Keyless Beeper Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
  2. Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

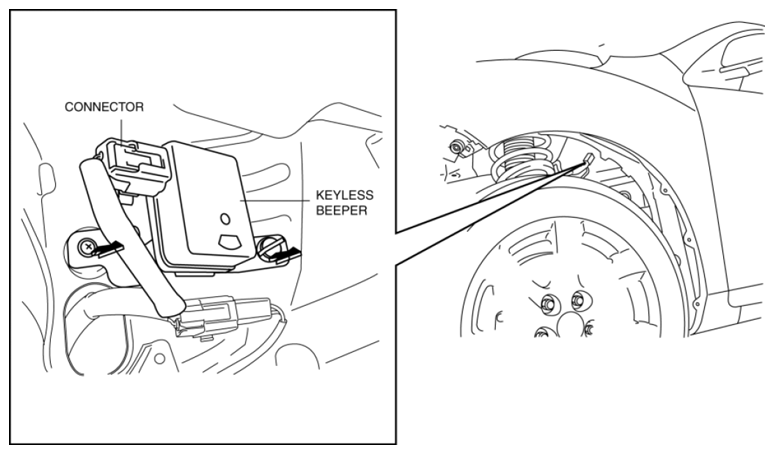

    Fig 1: Identifying Keyless Beeper And Connector
    G08158887
  4. Remove the keyless beeper in the direction of the arrow shown in the figure.
  5. Install in the reverse order of removal.
