No.2 Programming Procedure After PCM Replacement: Procedure

Fig 1: No.2 Programming Procedure Chart - After PCM Replacement

STEP	Procedure		Action after procedure
1	REPLACE PCM Refer to PCM removal/installation to perform PCM replacement and configuration. (See PCM REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See PCM REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)		Go to the next step.

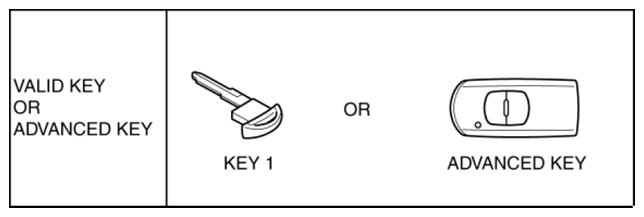

2	PERFORM PARAMETER RESET Connect the M-MDS to the DLC-2. (See M-MDS CONNECTING PROCEDURE .) Insert a valid key into the key slot and depress the clutch (MTX)/brake (ATX) pedal. NOTE: Although the security light remains illuminated and DTC 23 is displayed after approx. 1 min , continue to perform the procedure as indicated. The keyless indicator light (green) illuminates for approx. 5 s. NOTE: When a valid advanced key is used, the keyless indicator light (green) illuminates. Within 5 s after verifying that the keyless indicator light (green) illuminates, release the clutch (MTX)/brake (ATX) pedal and switch the ignition ON. CAUTION: When a valid advanced key is used, release the clutch (MTX)/brake (ATX) pedal and switch the ignition ON after verifying that the keyless indicator light (green) illuminates. After the vehicle is identified, select the following items from the initialization screen of the IDS. Select "Body". Select "Security". Select "PATS Functions". Then, select the following from the screen menu. Item "Parameter Reset" Perform the security access according to the directions on the M-MDS (IDS) screen. Select "PCM" from the replaced parts according to the directions on the M-MDS (IDS) screen. CAUTION: At this time, do not select the other parts from the M-MDS menu. After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select "Finish (this menu)". Switch the ignition off (LOCK). Switch the ignition ON. Verify that the security light illuminates for approx. 3 s , and then turns off. Switch the ignition off (LOCK). Disconnect the M-MDS (IDS) from the DLC-2.		Go to the next step.
3	VERIFY THAT KEY IS PROGRAMMED TO PCM Verify that the engine can be started with all the keys. Can the engine be started?	Yes	Procedure is completed.
3		No	Perform the corresponding DTC inspection to repair the malfunctioning part.
