No.1 Additional Key Programming Procedure (Using the M-MDS(IDS)): Procedure

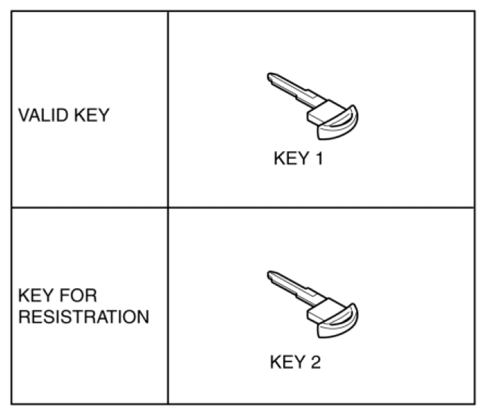

Fig 1: No.1 Additional Key Programming Procedure Chart (Using M-MDS - IDS)

STEP	Procedure		Action after procedure
1	VERIFY KEY 1 VALIDITY Start the engine using key 1. CAUTION: Remove the advanced key from the vehicle. Verify that the security light illuminates for approx. 3 s, and then turns off. Switch the ignition off (LOCK).		Go to the next step.
2	PERFORM ADDITIONAL KEY PROGRAMMING Connect the M-MDS (IDS) to the DLC-2. (See M-MDS CONNECTING PROCEDURE .) Insert key 1 into the key slot and depress the clutch (MTX)/brake (ATX) pedal. NOTE: The keyless indicator light (green) illuminates for approx. 5 s and then turns off. Within 5 s after verifying that the keyless indicator light (green) illuminates, release the clutch (MTX)/brake (ATX) pedal and switch the ignition to off (LOCK)→ACC→ON. Remove key 1 from the key slot and insert key 2 into the key slot. NOTE: After key 1 is removed, continue to perform the procedure as indicated even though the advanced key system warning alarm sounds and the keyless indicator light (red) starts to flash. After the vehicle is identified, select the following items from the initialization screen of the IDS. Select "Body". Select "Security". Select "PATS Functions". Then, select the following from the screen menu. Item "Program Additional Ignition Key" Perform the security access according to the directions on the M-MDS (IDS) screen. NOTE: After executing the above menu, "This operation is successful" is displayed. At this stage, the programming for the key switching the ignition ON is completed. If an additional key is to be programmed, continue to perform the procedure according to the directions on the M-MDS (IDS) screen. To finish the key programming, go to the next step.	Yes	Change the key and repeat Step 2.
2		No	Go to the next step.
3	FINISH THE M-MDS After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select "Finish (this menu)". Switch the ignition off (LOCK).		Go to the next step.
4	VERIFY THAT KEY IS PROGRAMMED Verify that the engine can be started with the programmed key. NOTE: When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.		Procedure is completed.
