Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [MZR 2.0, MZR 2.5]
>>
Engine Control System Wiring Diagram
Engine Control System Wiring Diagram

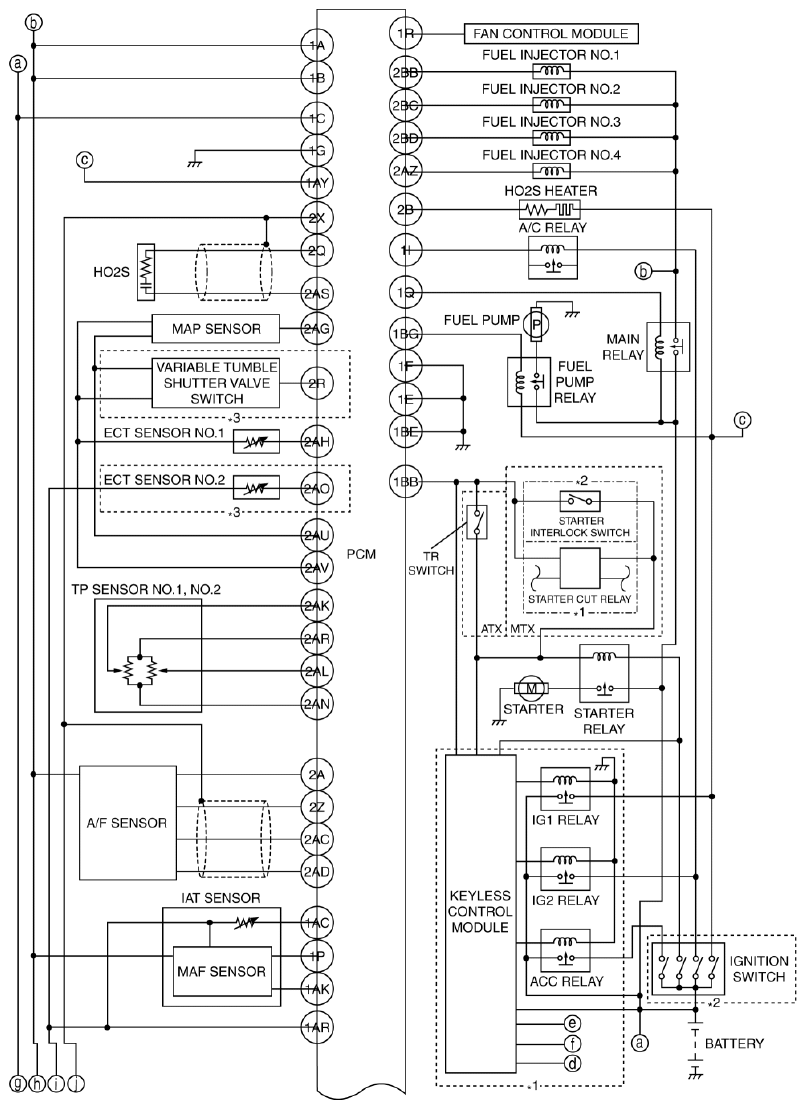

Fig 1: Engine Control System Wiring Diagram [MZR 2.0, MZR 2.5] (1 Of 2)

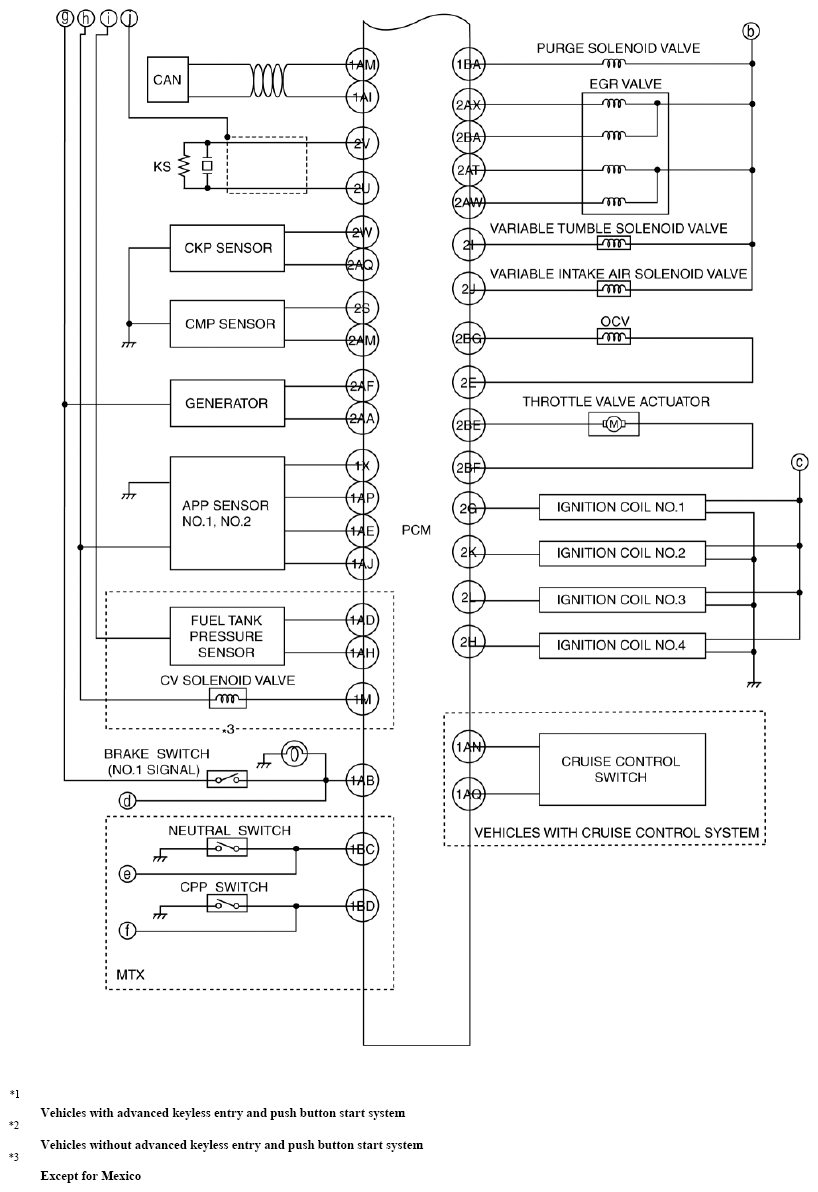

Fig 2: Engine Control System Wiring Diagram [MZR 2.0, MZR 2.5] (2 Of 2)
