Brake Pipe Installation Note
Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.

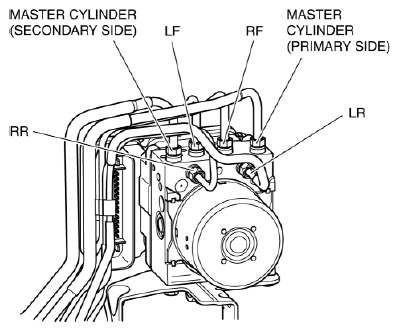

Fig 1: Identifying Positions Of Brake Pipes
