Power System Location Index [Without Advanced Keyless Entry And Push Button Start System]

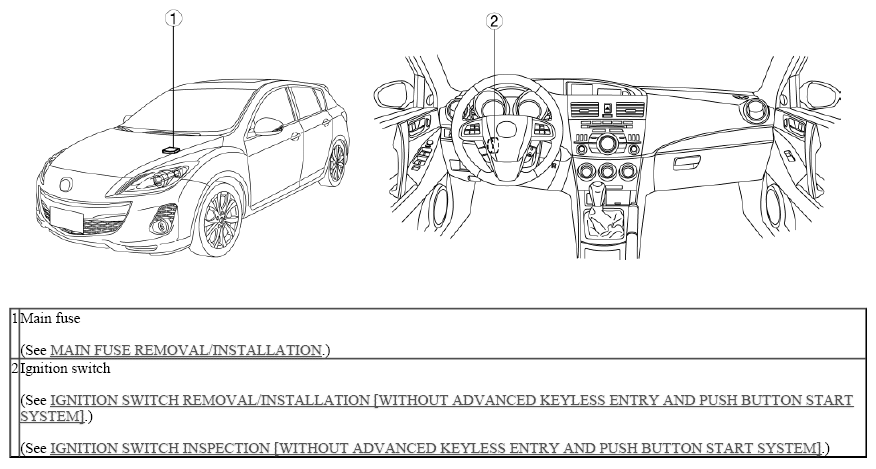

Fig 1: Identifying Power System Components Location (Without Advanced Keyless Entry And Push Button Start System)
G08159487Courtesy of MAZDA MOTORS CORP.
