Main Fuse Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove nuts A and B shown in the figure.

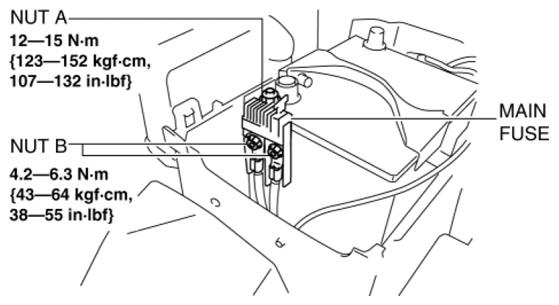

    Fig 1: Main Fuse And Nuts With Torque Specifications A And B
    G08159488Courtesy of MAZDA MOTORS CORP.
  3. Remove the main fuse.
  4. Install in the reverse order of removal.
