Pilot Bearing Installation Note

Use the SSTs to install the pilot bearing.

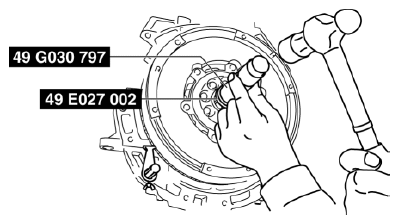

Fig 1: Installing Pilot Bearing Using SSTs
As shown in the figure, press-fit the pilot bearing to the position which is 4.0-5.0 mm {0.16-0.19 in} from the crankshaft end.

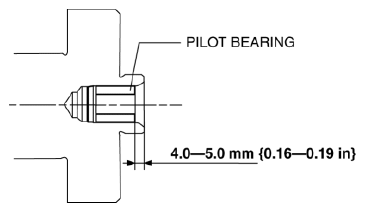

Fig 2: Press-Fitting Pilot Bearing To Position 4.0-5.0 mm (0.16-0.19 in) From Crankshaft End
