Flywheel Removal Note

  1. Hold the flywheel using the SST  .

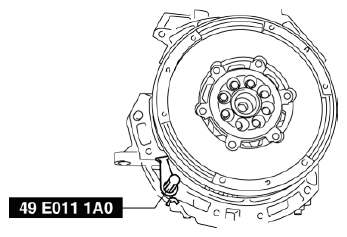

    Fig 1: Holding Flywheel Using SST
    G08157151
  2. Remove the bolts evenly and gradually in a crisscross pattern.
  3. Remove the flywheel.
