Clutch Cover Installation Note

Install the SSTs .

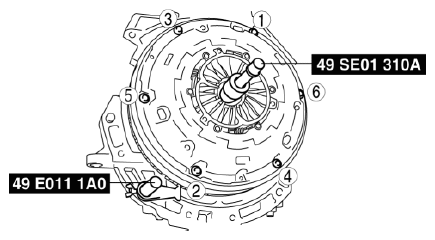

Fig 1: Identifying Clutch Cover Bolts Tightening Crisscross Pattern
Tighten the bolts in Min. 2 stages.
Tighten partially with a crisscross pattern.
Fully tighten to specified torque with a crisscross pattern.
Tightening torque
- 25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}
