Main Shift Cable and Main Select Cable Removal Note

  1. Remove the both shift cable end and select cable end using a fastener remover.

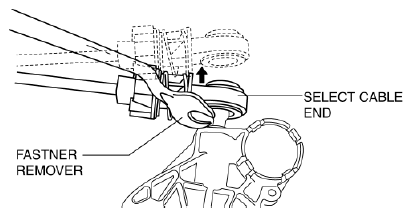

    Fig 1: Removing Both Shift Cable End And Select Cable End Using Fastener Remover
    G08157380
