Rear Buckle Removal/Installation
>>
Rear Buckle Installation Note
Rear Buckle Installation Note
After installing the rear seat cushion, position the rear buckle (RH) and rear buckle (center) with the rear buckle (RH) and rear buckle (center) buttons facing upward as shown in the figure.

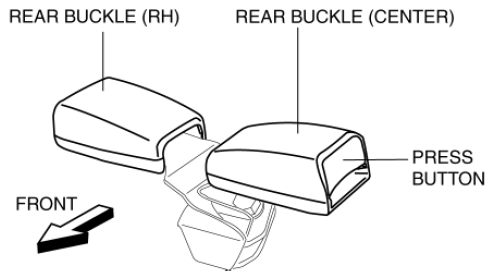

Fig 1: Identifying Rear Buckle (RH) And Rear Buckle (Center) Buttons
