Section 17 (Engine Control System [SKYACTIV-G 2.0])
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
Intake CMP signal
Intake CMP signal
WARNING:
This page is about a different variant/trim than selected.

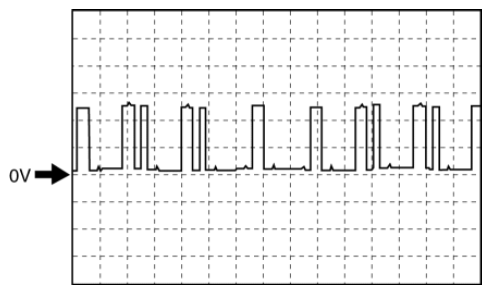

Fig 1: Intake CMP Signal Waveform Graph
PCM terminals
1Y(+)-body ground(-)
Oscilloscope setting
2 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
