ECT Sensor No.2

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  5. Remove the air cleaner assembly. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  6. Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  7. Disconnect the short cord connector of ECT sensor No.2.

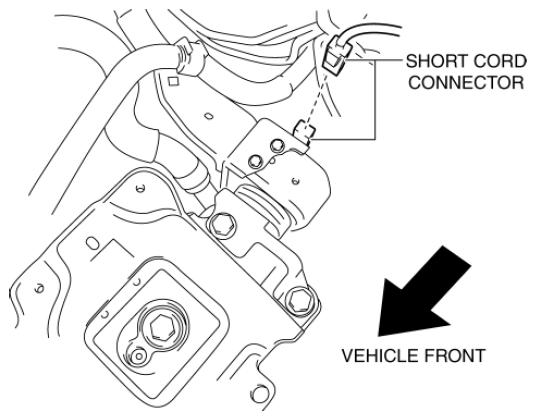

    Fig 1: ECT Sensor No.2 And SST With Torque Specifications
    G08155524
  8. Set the PCM harness protector aside. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  9. Remove the bolts from the bracket.

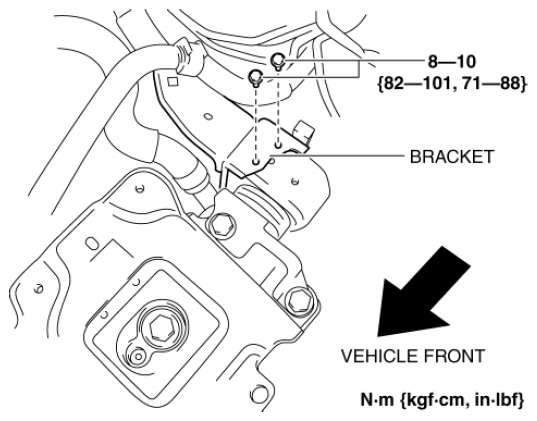

    Fig 2: Bracket Bolts With Torque Specifications
    G08155525
  10. Lift up the bracket.
  11. Disconnect the ECT sensor No.2 connector.

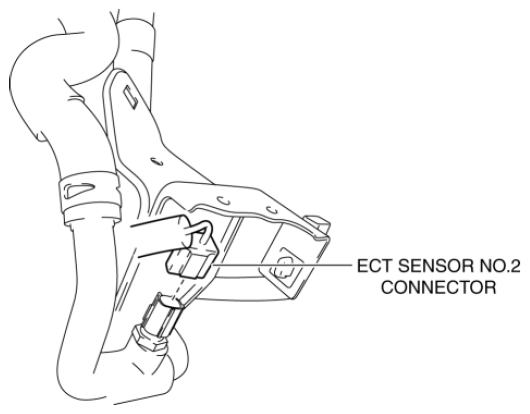

    Fig 3: Identifying ECT Sensor No.2 Connector
    G08155526
  12. Remove the ECT sensor No.2 and water pipe from the bracket.

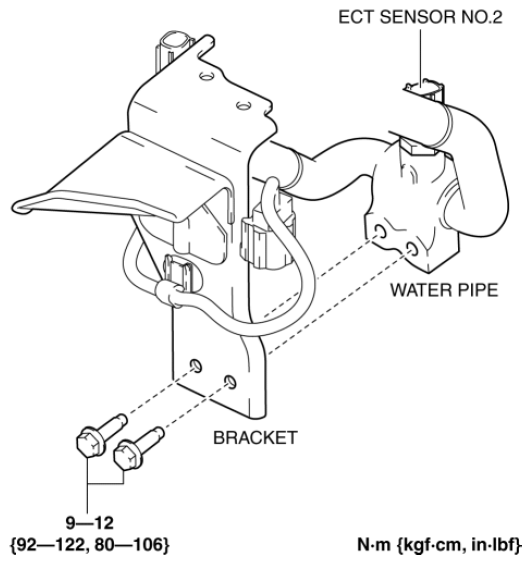

    Fig 4: ECT Sensor No.2 And Water Pipe With Torque Specifications
    G08155527
  13. Remove the ECT sensor No.2 from the water pipe.

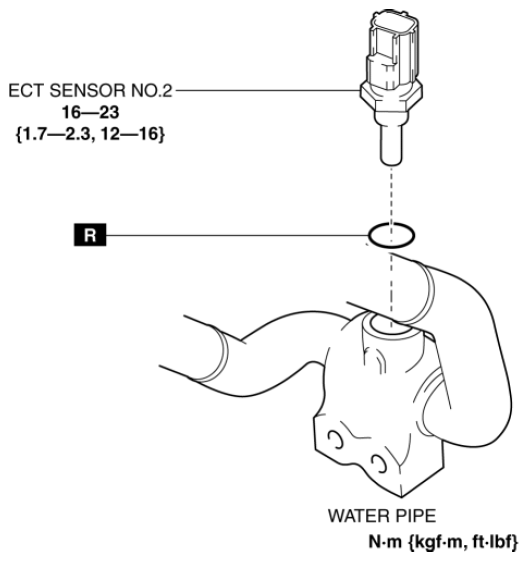

    Fig 5: ECT Sensor No.2 And Water Pipe With Torque Specifications
    G08155528
  14. Install in the reverse order of removal.
  15. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
