ECT Sensor No.1

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  5. Remove the air cleaner assembly. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  6. Disconnect the ECT sensor No.1 connector.
  7. Remove the ECT sensor No.1 using the SST  .

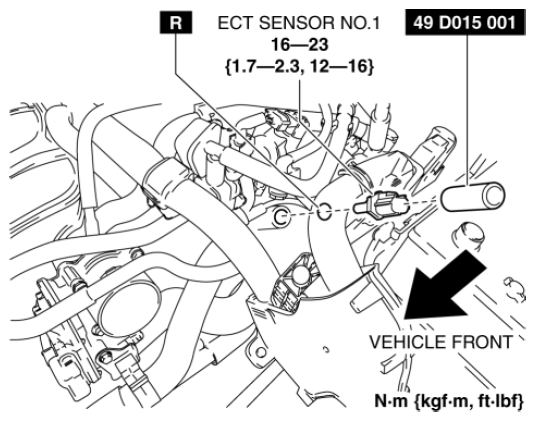

    Fig 1: ECT Sensor No.1 And SST With Torque Specifications
    G08155523
  8. Install in the reverse order of removal.
  9. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
