Section 17 (Engine Control System [SKYACTIV-G 2.0])
>>
Engine Control System Wiring Diagram
Engine Control System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

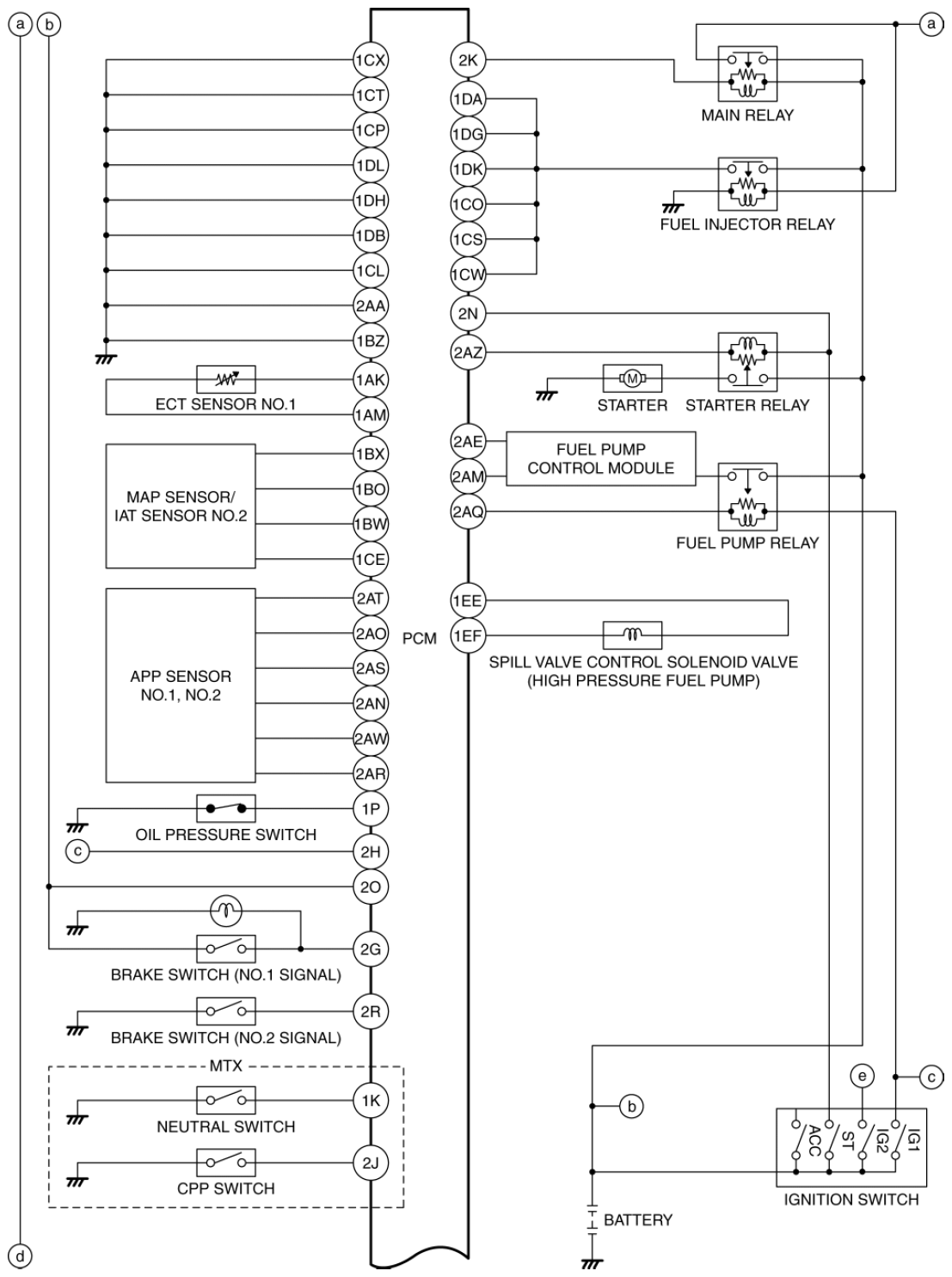

Fig 1: Engine Control System Wiring Diagram (1 Of 3)

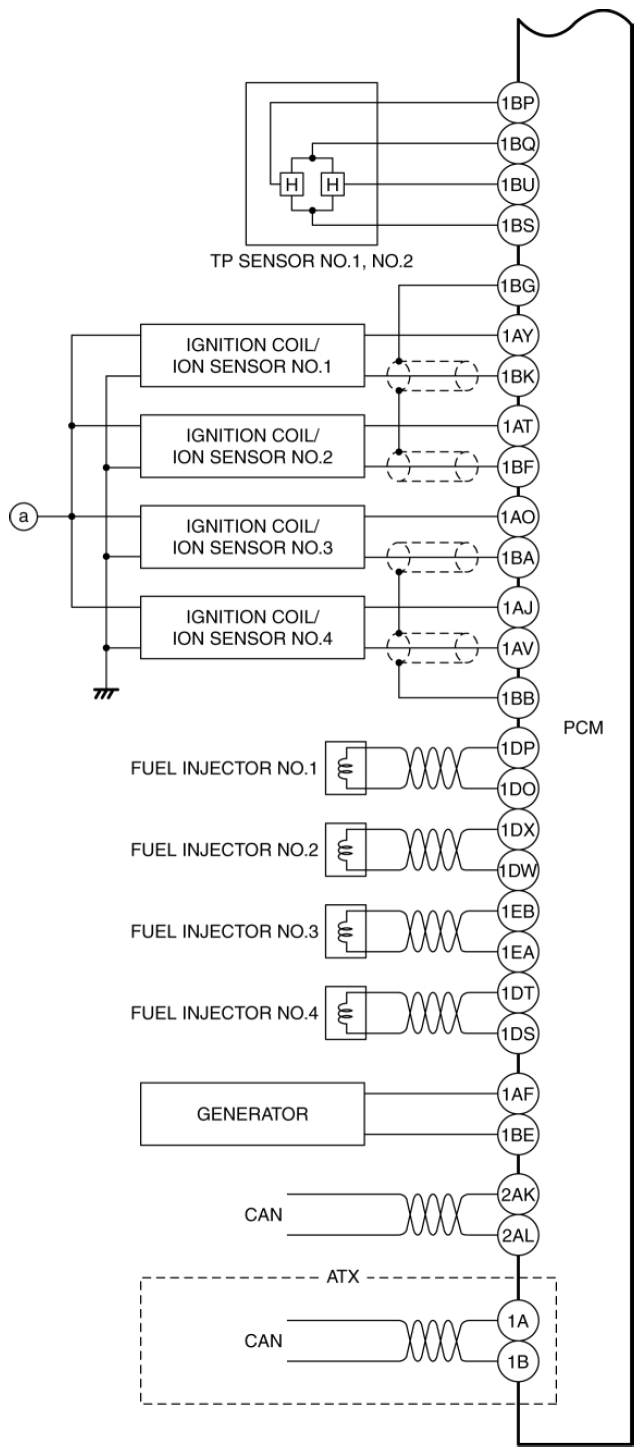

Fig 2: Engine Control System Wiring Diagram (2 Of 3)

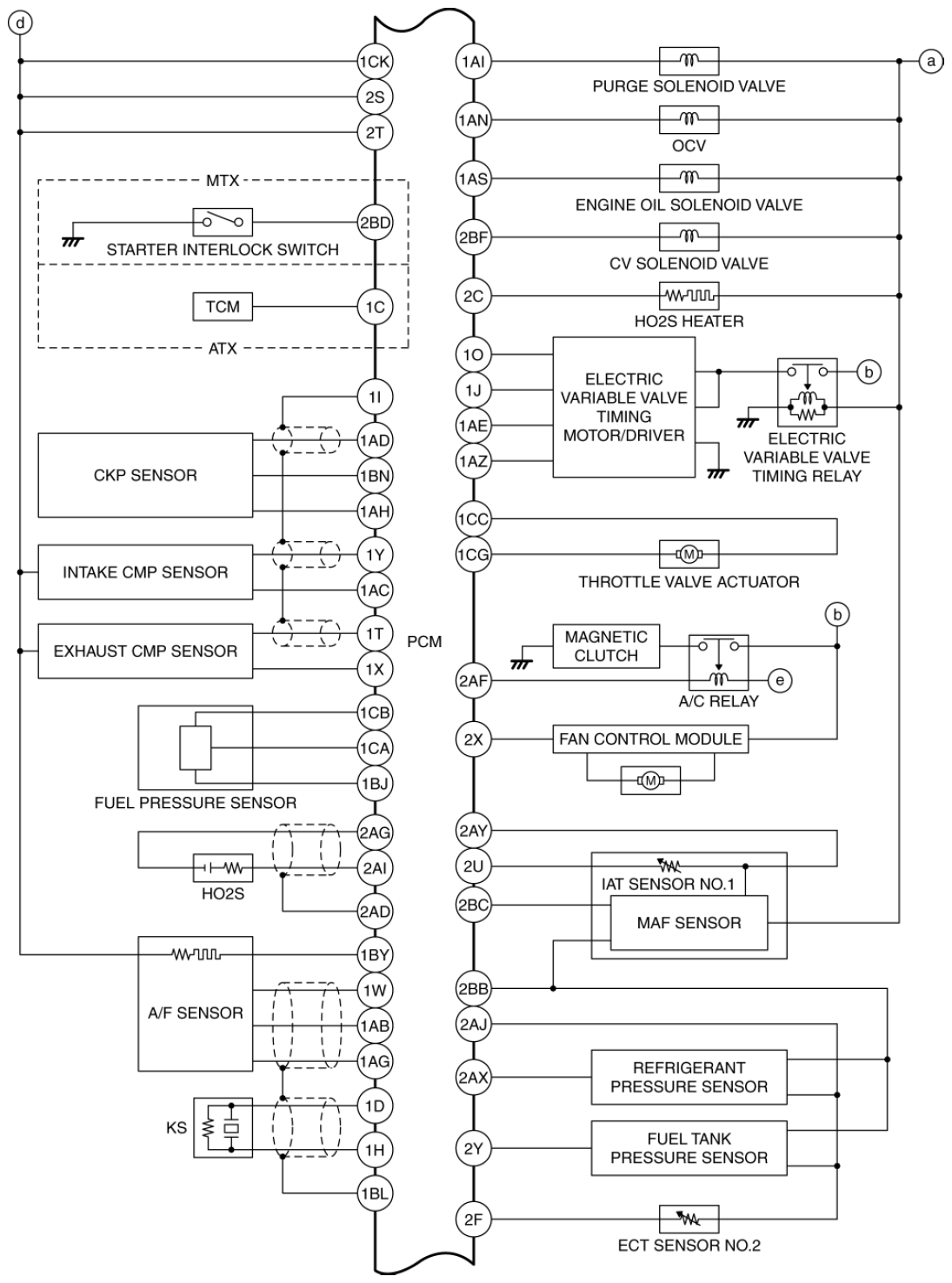

Fig 3: Engine Control System Wiring Diagram (3 Of 3)
