Intake CMP Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  5. Disconnect the intake CMP sensor connector.
  6. Remove the intake CMP sensor.

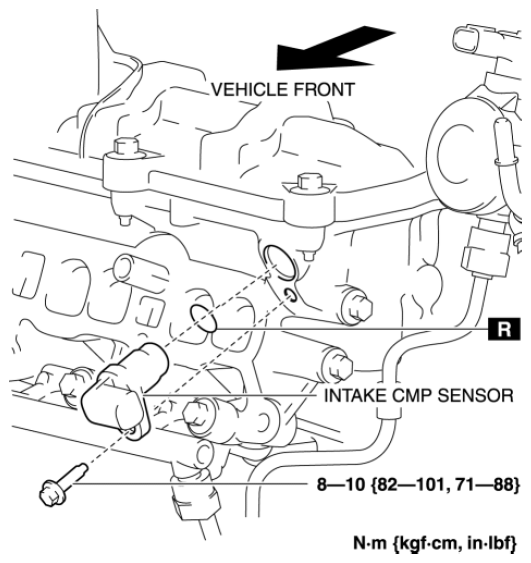

    Fig 1: Intake CMP Sensor And Bolt With Torque Specifications
    G08155562
  7. Install in the reverse order of removal.
