WILL NOT CRANK

DESCRIPTION

Starter does not work.

POSSIBLE CAUSE

Vehicles without advanced keyless entry and push button start system:

Coil antenna connector or terminals malfunction
Instrument cluster and related wiring harness malfunction
Immobilizer system malfunction
PCM ground circuit malfunction
Coil antenna circuit and related connectors malfunction
Coil antenna power supply circuit malfunction
Following circuit and/or connector malfunction:
- Coil antenna terminal A-Instrument cluster terminal 2Q
- Coil antenna terminal B-Instrument cluster terminal 2M
- PCM terminal 1AM-Instrument cluster terminal 2B
- PCM terminal 1AI-Instrument cluster terminal 2D
Battery malfunction
Fuse malfunction
Open circuit in wiring harness between PCM terminal 1B and starter relay
Starter interlock switch malfunction
Starter interlock switch related wiring harness malfunction
Open or short circuit in wiring harness between the following:
- Starter relay-PCM
- Starter relay-Ignition switch
Ignition switch malfunction
Ignition switch related wiring harness malfunction
Starter malfunction
Open or short circuit in wiring harness between the following:
- Starter relay-Battery positive terminal
- Starter relay-Starter
Starter malfunction
Seized/hydro locked engine, flywheel
PCM continuous memory DTC is stored
Starter circuit in ignition switch
Open circuit in wiring harness between ignition switch and starter

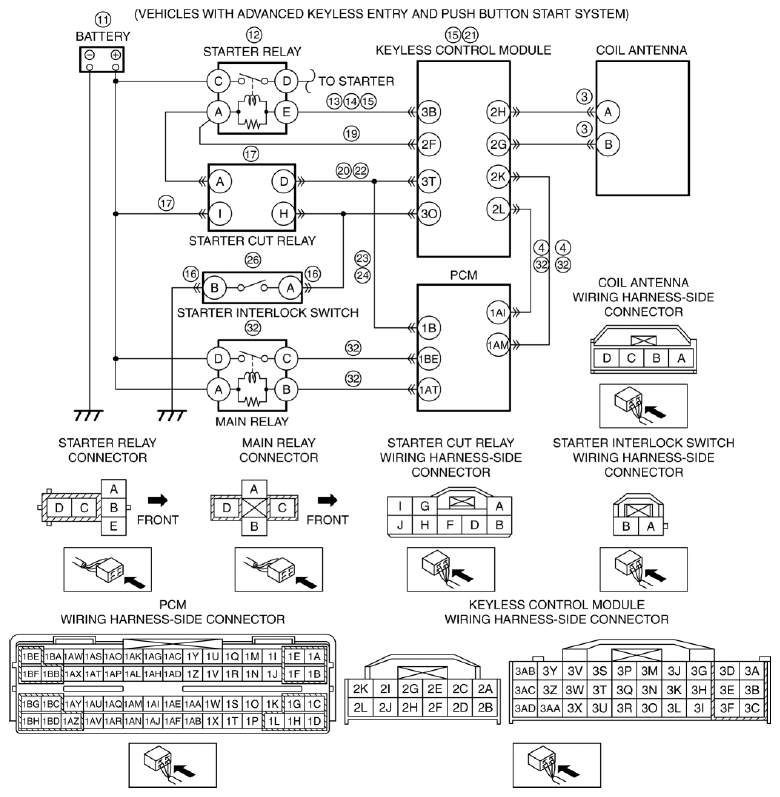

Vehicles with advanced keyless entry and push button start system:
Advanced keyless entry and push button start system malfunction
Coil antenna connector or terminals malfunction
Instrument cluster and related wiring harness malfunction
Immobilizer system malfunction
PCM ground circuit malfunction
Coil antenna circuit and related connectors malfunction
Coil antenna power supply circuit malfunction
Following circuit and/or connector malfunction:
- Coil antenna terminal A-Keyless control module terminal 2H
- Coil antenna terminal B-Keyless control module terminal 2G
- PCM terminal 1AM-Keyless control module terminal 2K
- PCM terminal 1AI-Keyless control module terminal 2L
Battery malfunction
Fuse malfunction
Starter relay malfunction
Open circuit in wiring harness between keyless control module terminal 3B and starter relay terminal E
Short to ground in wiring harness between keyless control module terminal 3B and starter relay terminal E
Keyless control module malfunction
Open or short circuit in wiring harness between battery positive terminal and starter cut relay
Starter cut relay malfunction
Open or short circuit in wiring harness between the following:
- Starter cut relay-Starter interlock switch
- Starter interlock switch-Body ground
Starter interlock switch malfunction
Open or short circuit in wiring harness between starter relay terminal A and keyless control module terminal 2F
Open circuit in wiring harness between keyless control module terminal 3T and starter cut relay terminal D
Starter malfunction
Open or short circuit in wiring harness between the following:
- Starter-Ground
- Starter relay-Battery positive terminal
- Starter relay-Starter
Open circuit in wiring harness between starter cut relay terminal D and PCM terminal 1B
Open circuit in wiring harness between PCM terminal 1B and starter relay
Seized/hydro locked engine, flywheel
PCM continuous memory DTC is stored
Starter circuit in ignition switch
Open circuit in wiring harness between ignition switch and starter
