Engine Controls Symptom Troubleshooting Wiring Diagram

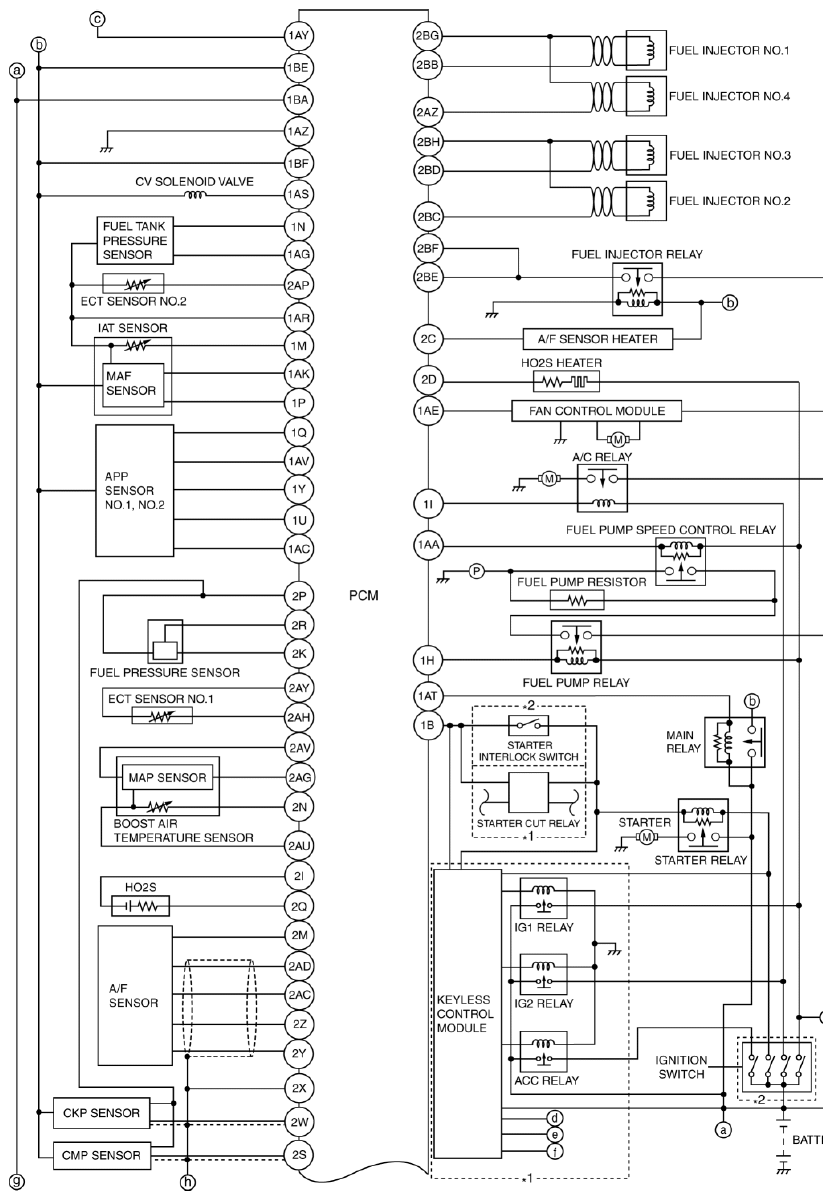

Fig 1: Engine Control System Symptom Troubleshooting Wiring Diagram [MZR 2.3 DISI Turbo] (1 Of 2)
G08156359

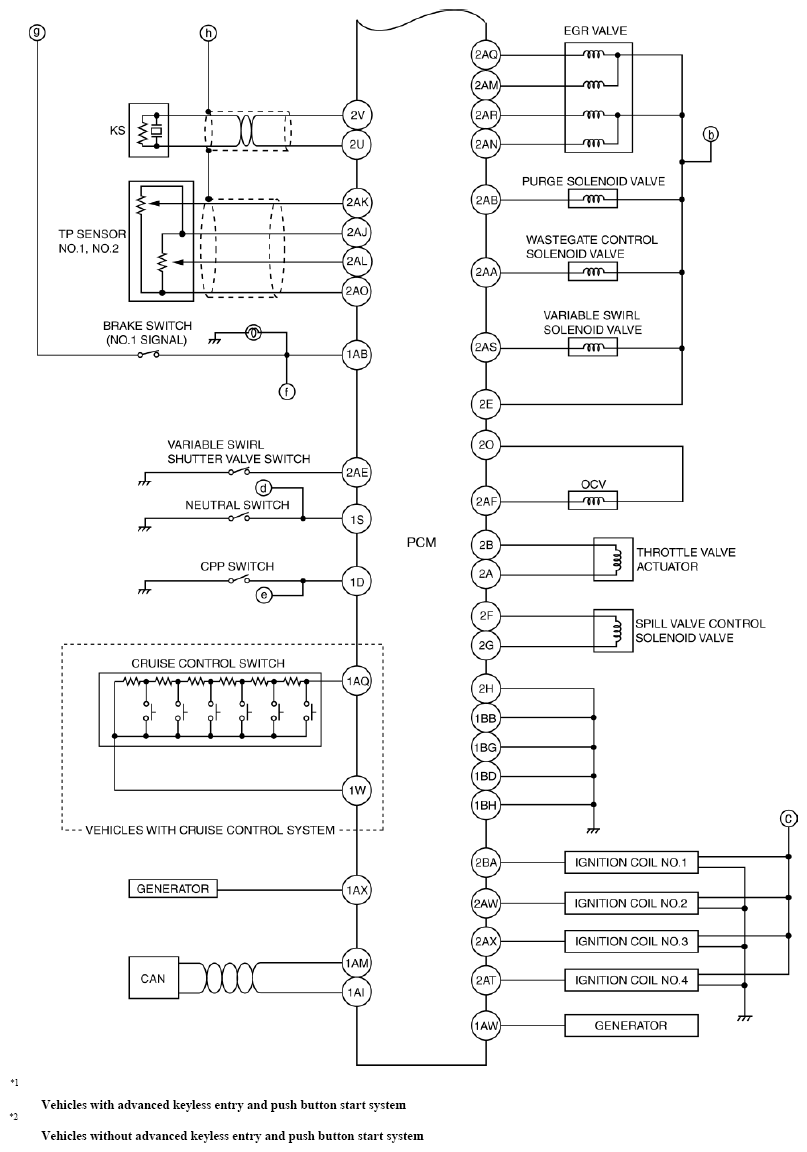

Fig 2: Engine Control System Symptom Troubleshooting Wiring Diagram [MZR 2.3 DISI Turbo] (2 Of 2)
G08156360
