Clearance Inspection: Overview

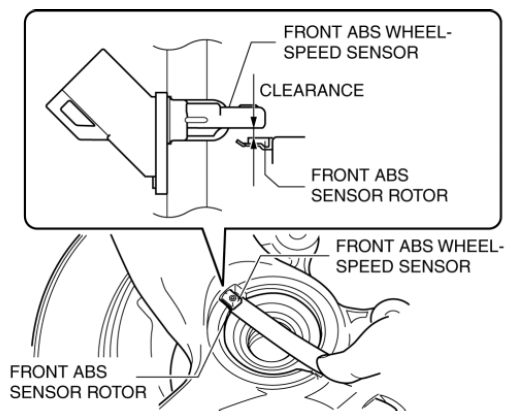

- Measure the gap between the front ABS sensor rotor and the front ABS wheel-speed sensor using a feeler gauge.
- If not within the specification, verify the following items and repair or replace if necessary.
- Is there deformation or damage to the front ABS sensor rotor?
- Is there deformation or damage to the front ABS wheel speed sensor?
- Is there foreign material adhering?
Clearance
- 2.1 mm {0.082 in} or less
- If not within the specification, verify the following items and repair or replace if necessary.
