Connector Removal Note

  1. Pull the connector cover up in the direction of the arrow while pressing the tab of the connector cover.

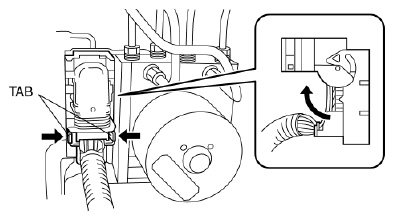

    Fig 1: Pulling Connector Cover Up
    G08156053
  2. Pull the connector toward the vehicle front and remove it.
