Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and ABS HU/CM.

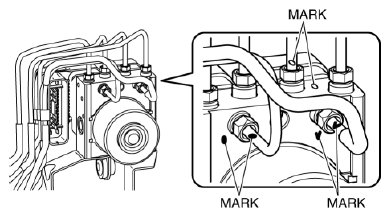

    Fig 1: Identifying Alignment Marks On Brake Pipe And ABS HU/CM
    G08156054
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Disconnect the brake pipe.
