Rear Power Window Motor

  1. Fully lower the rear door glass.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  5. Remove the bolts.

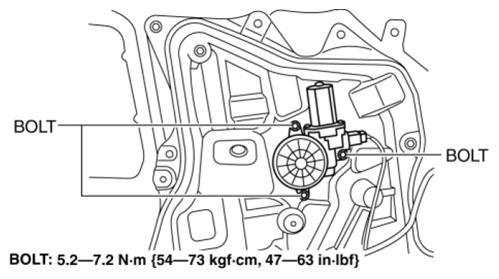

    Fig 1: Front Power Window Motor And Bolts With Torque Specification
    G08158579
  6. Disconnect the front power window motor connector.

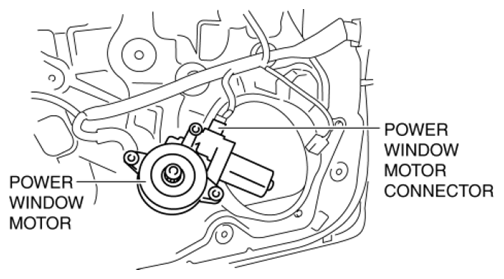

    Fig 2: Front Power Window Motor Connector
    G08158580
  7. Install in the reverse order of removal.
    • NOTE: When installing the rear power window motor to the rear power window regulator drum, the drum housing hooks may detach from the door module. If this happens, remove the door speaker, insert your hand in the speaker installation hole, connect the drum housing hooks, and while supporting the drum housing, install the rear power window motor to the drum.
