Front Passenger Side

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the power window motor connector.
  5. Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

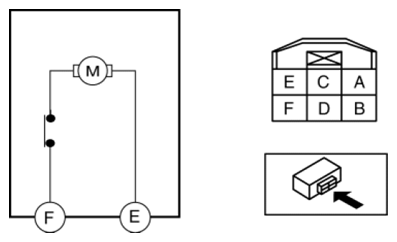

    Fig 1: Power Window Motor Connector Terminals (Front Passenger Side)
    G08158582
    • If the power window motor does not operate as indicated in the table, replace the power window motor.
    Operation Terminal
    E F
    Open Ground B+
    Close B+ Ground
