Vehicles With BSM System

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
Disconnect the power outer mirror connector.
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Apply battery voltage to power outer mirror connector terminal D, and connect terminal F to ground.

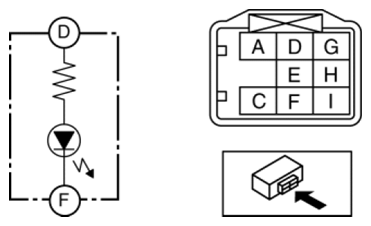

Fig 1: Identifying Power Outer Mirror Connector Terminals
- Verify that the BSM indicator light illuminates.
  - If there is any malfunction, inspect the outer mirror glass. (See OUTER MIRROR GLASS INSPECTION .)
  - If there is no malfunction in the outer mirror glass, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
