Outer Mirror Glass Installation

  1. Connect the mirror heater connectors. (Vehicles with heated outer mirrors)
  2. Connect the BSM indicator light connector. (Vehicles with BSM system)
  3. Press part C on the outer mirror glass and install pin C.

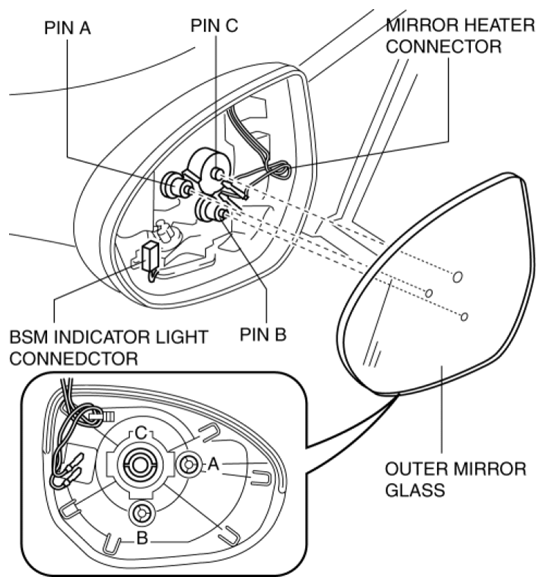

    Fig 1: Pressing Part C On Outer Mirror Glass
    G08158647
  4. Press part A on the outer mirror glass and install pins A.
  5. Press part B on the outer mirror glass and install pins B.
  6. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
