Trunk Lid Latch Switch Inspection

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Remove the trunk lid latch and lock actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION .)
  4. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

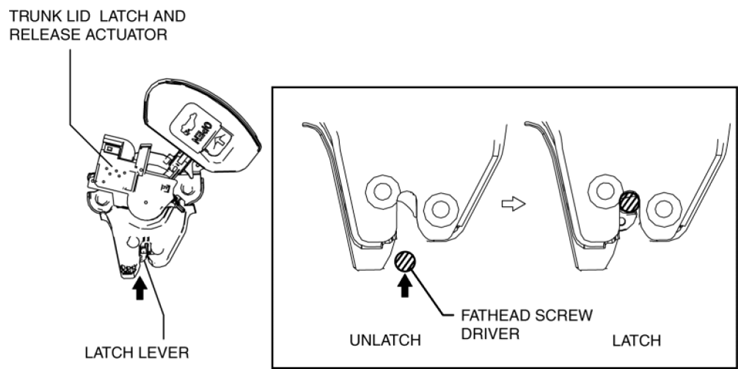

    Fig 1: Pressing Latch Using Flathead Screwdriver
    G08158839
  5. Verify that the continuity is as indicated in the table.

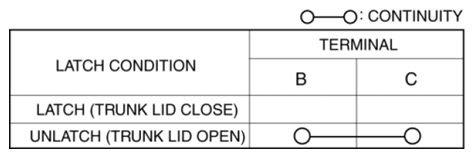

    Fig 2: Trunk Lid Latch Switch Terminal Continuity Chart
    G08158840
    • If not as indicated in the table, replace the trunk lid latch and release actuator

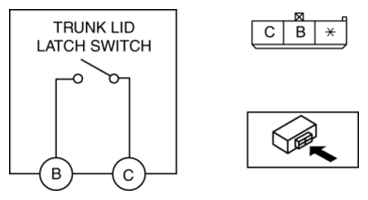

    Fig 3: Trunk Lid Latch Switch And Terminal Identification
    G08158841
