Trunk Lid Key Cylinder Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Lift the clip in the direction of the arrow (1), and pull out the key rod in the direction of the arrow (2).

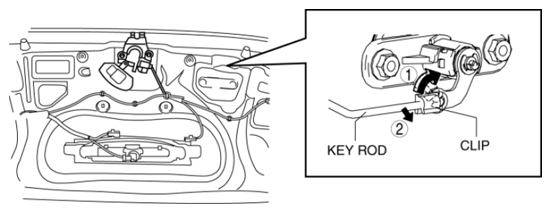

    Fig 1: Pulling Out Key Rod
    G08158853
  4. Remove the nuts.

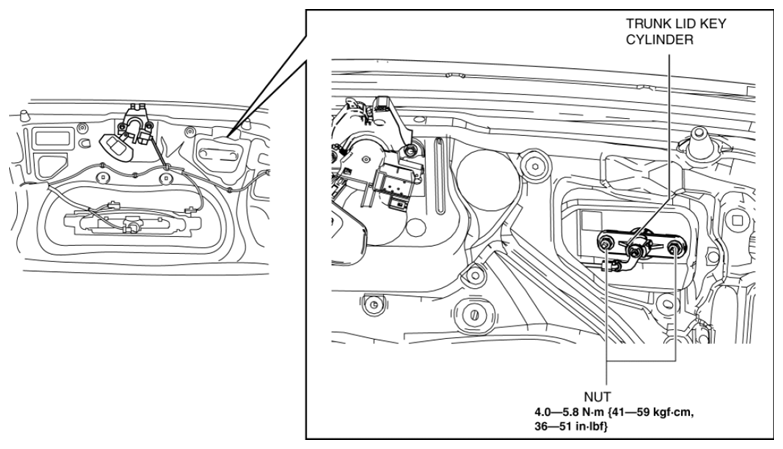

    Fig 2: Trunk Lid Key Cylinder And Nut With Torque Specification
    G08158854
  5. Remove the trunk lid key cylinder.
  6. Install in the reverse order of removal.
