Interior, Front

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R] .) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R] .) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    3. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    6. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    7. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
    8. Rear heat duct (1) (See REAR HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

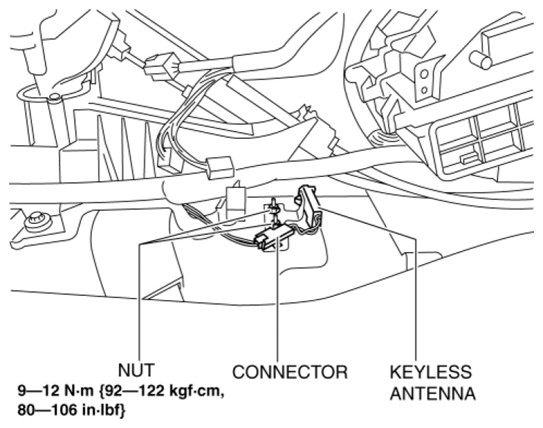

    Fig 1: Keyless Antenna, Connector And Nut With Torque Specification (Interior, Front)
    G08158883
  4. Remove the nuts.
  5. Remove the keyless antenna.
  6. Install in the reverse order of removal.
