Rear Inner Handle

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect each cable and remove the rear inner handle.

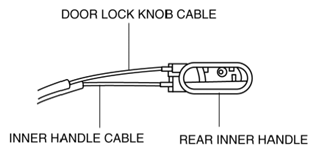

    Fig 1: Identifying Door Lock Knob Cable, Inner Handle Cable And Rear Inner Handle
    G08158764
  4. Install in the reverse order of removal.
