Front Inner Handle

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the door lock switch connector.

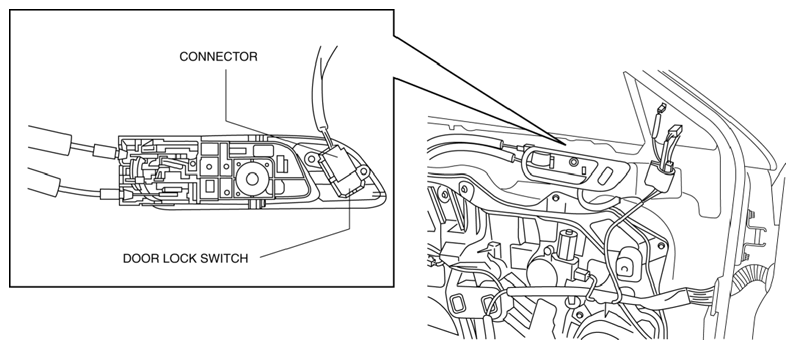

    Fig 1: Identifying Door Lock Switch Connector
    G08158762
  5. Disconnect each cable and remove the front inner handle.

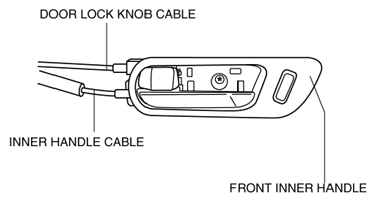

    Fig 2: Identifying Door Lock Knob Cable, Inner Handle Cable And Front Inner Handle
    G08158763
  6. Install in the reverse order of removal.
