Crash Zone Sensor And SAS Control Module Connector End View

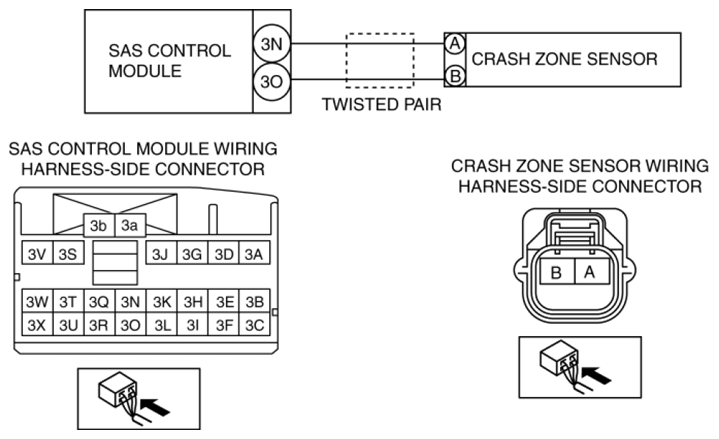

Fig 1: Crash Zone Sensor And SAS Control Module Connector End View
G08158075Courtesy of MAZDA MOTORS CORP.


Fig 1: Crash Zone Sensor And SAS Control Module Connector End View
G08137600Courtesy of MAZDA MOTORS CORP.
