Discharge Headlight Control Module Removal/Installation

CAUTION:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Remove the screws.

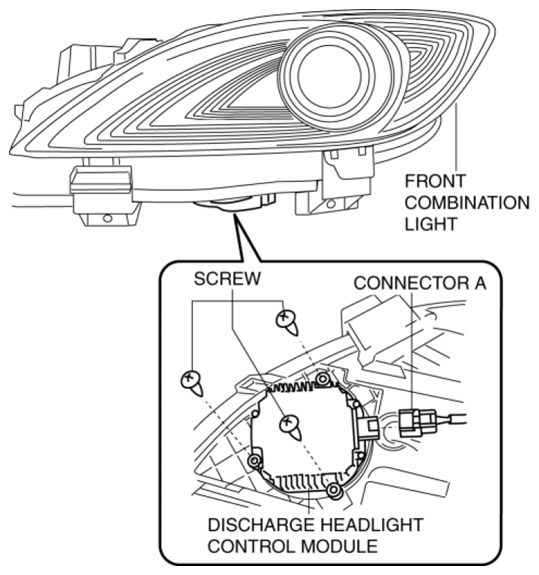

    Fig 1: Identifying Discharge Headlight Control Module, Connector A And Screws
    G08159160
  5. Disconnect the connector A.
  6. Remove the screw.

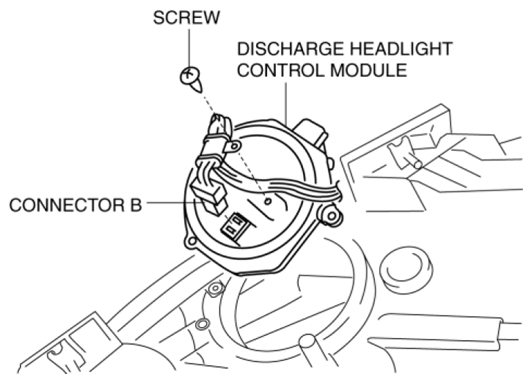

    Fig 2: Identifying Discharge Headlight Control Module, Connector B And Screws
    G08159161
  7. Disconnect the connector B.
  8. Remove the discharge headlight control module.
  9. Rotate the cover in the direction of the arrow shown in the figure to remove it.

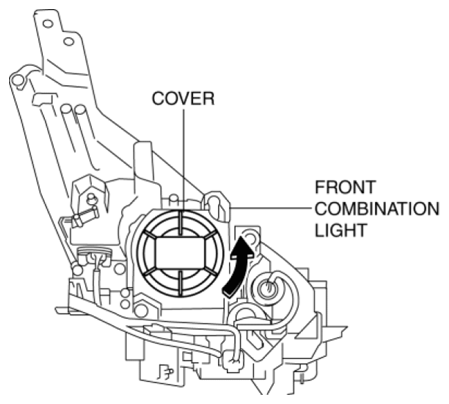

    Fig 3: Rotating Front Combination Light Cover
    G08159162
  10. Rotate the connector in the direction of the arrow shown in the figure to remove it.

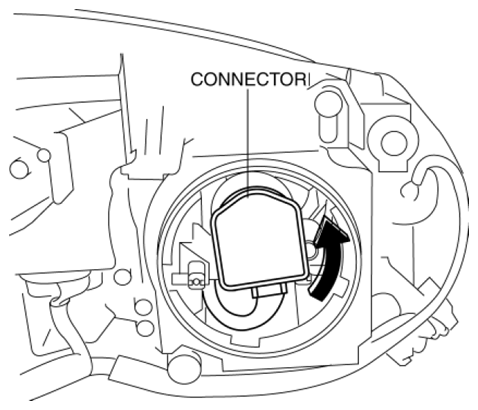

    Fig 4: Rotating Front Combination Light Connector
    G08159163
  11. Remove the short cord.

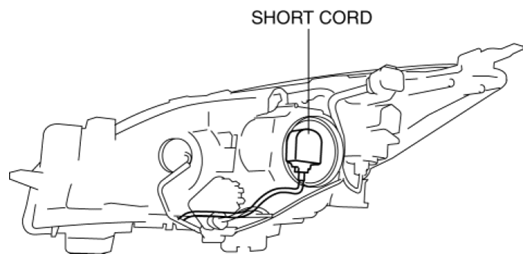

    Fig 5: Identifying Short Cord
    G08159164
  12. Install in the reverse order of removal.
