AFS (Adaptive Front Lighting System) Control Module Removal/Installation

NOTE:
  • Perform the auto leveling system initialization after newly replacing the AFS control module to assure that the auto leveling system operates correctly.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    5. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

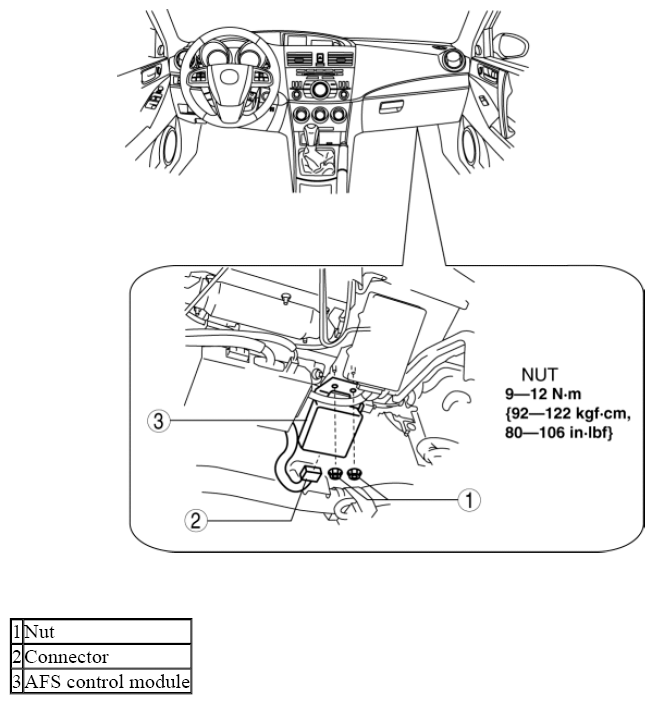

    Fig 1: AFS Control Module, Connector And Nut With Torque Specification
    G08159166
  4. Install in the reverse order of removal.
  5. Perform the headlight auto leveling system initialization after newly replacing the AFS control module. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
