Home >> Mazda >> 2012 >> 2 Touring, 1.5L Eng VIN Z, Automatic Trans >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Location Index

Location Index

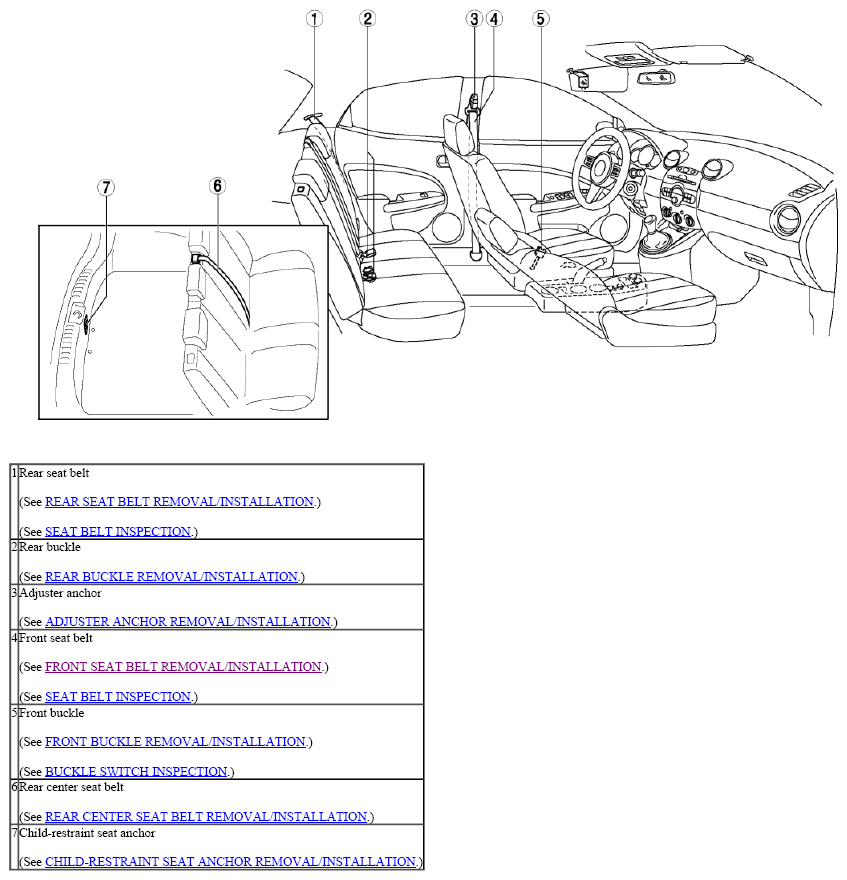

Fig 1: Identifying Seat Belt System Components Location

G08107870
