2 Touring, 1.5L Eng VIN Z, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine Control System MZR 1.5]
>>
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

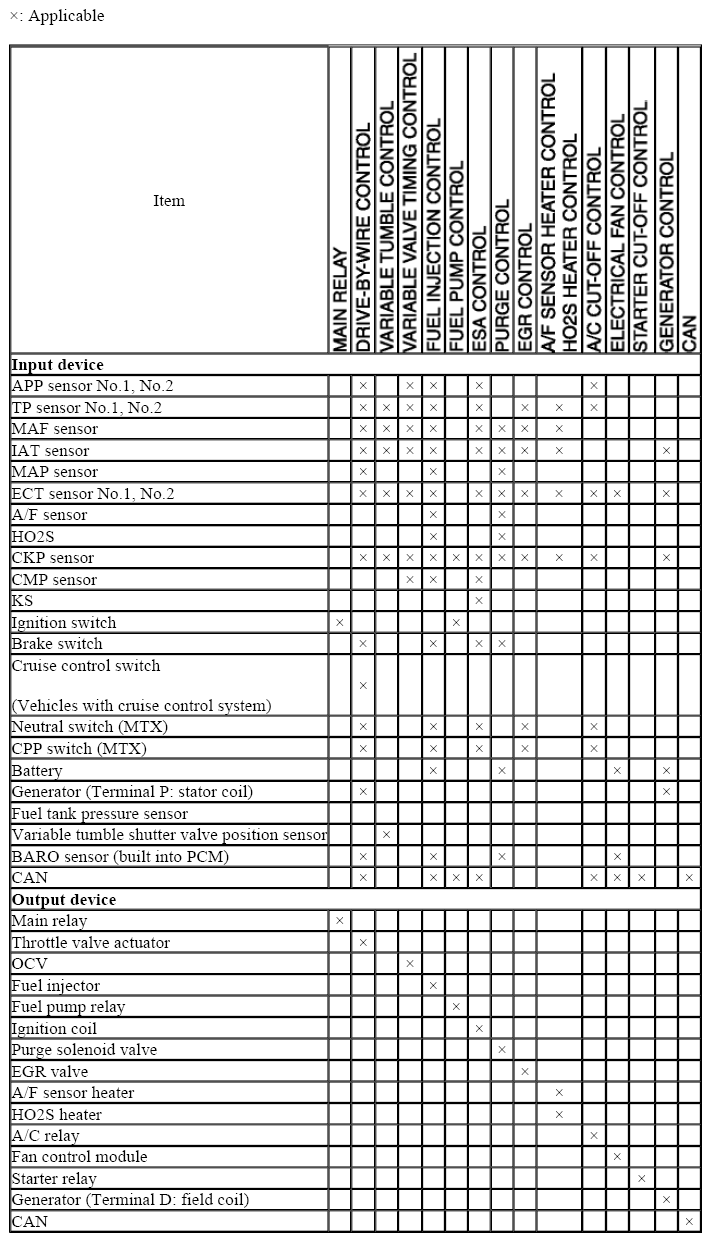

Fig 1: Control System Device And Control Relationship Chart - MZR 1.5
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
