Home >> Mazda >> 2012 >> 2 Touring, 1.5L Eng VIN Z, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System [MZR 1.5] >> Ignition System Location Index

Ignition System Location Index

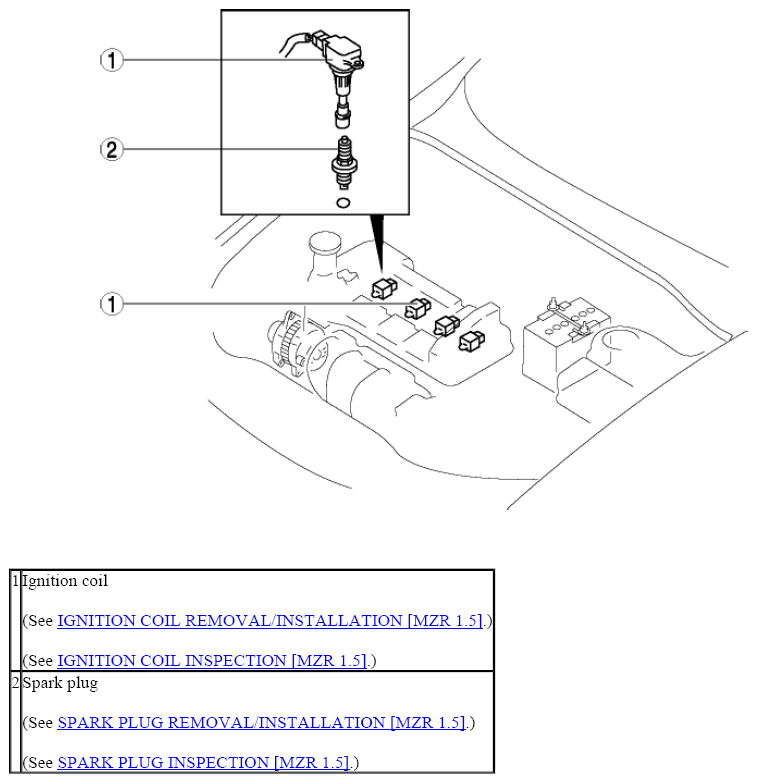

Fig 1: Ignition System Component Location

G08107391
