Inspection Using An Oscilloscope (Waveform Reference)
>>
CMP signal
CMP signal

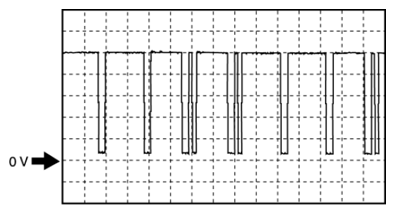

Fig 1: CMP Signal Waveform
PCM terminals
2N (+)-Negative battery terminal (-)
Oscilloscope setting
1 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
idle (after warm up)
