Outer Mirror Glass Removal

  1. Disconnect the negative battery cable.
  2. Press area A of the outer mirror glass so that area B moves outward.

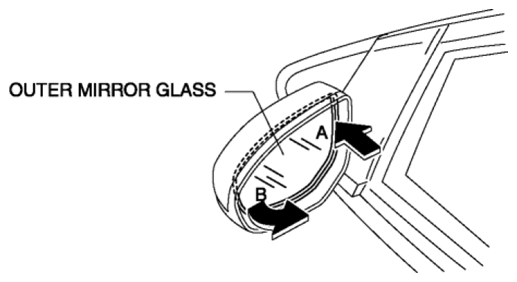

    Fig 1: Pressing Area A Of Outer Mirror Glass
    G08107988
  3. Detach pin A while lifting up the inside of the mirror glass holder.

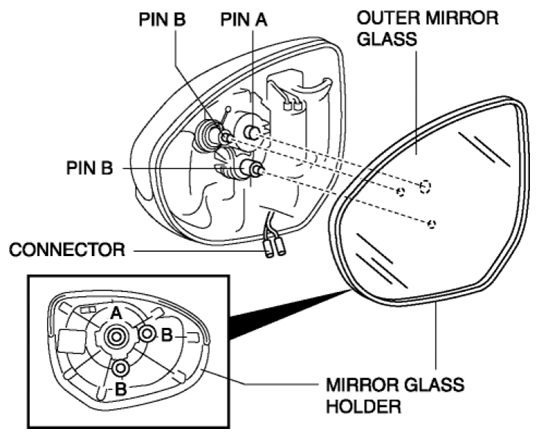

    Fig 2: Identifying Mirror Glass Holder Pins
    G08107989
  4. Pull the outer mirror glass and remove pins B.
  5. Disconnect the connector. (Vehicles with heated outer mirror)
  6. Remove the outer mirror glass.
