Rear inner handle

  1. Disconnect the negative battery cable.
  2. Remove the sail inner garnish. (See SAIL INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect each cable and remove the rear inner handle.

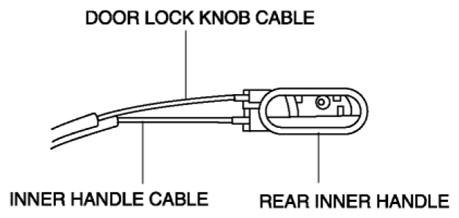

    Fig 1: Identifying Door Lock Knob Cable, Inner Handle Cable And Rear Inner Handle
    G08108029
  5. Install in the reverse order of removal.
