Front Door Latch Switch Inspection

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in} .

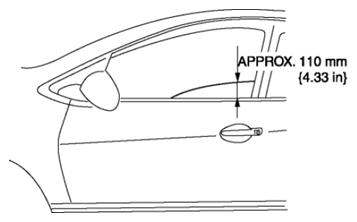

Fig 1: Identifying Distance From Top Of Front Door Glass To Upper Part Of Front Beltline Molding
Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
6. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
Press the latch in using a flathead screwdriver to inspect the latch lever condition.

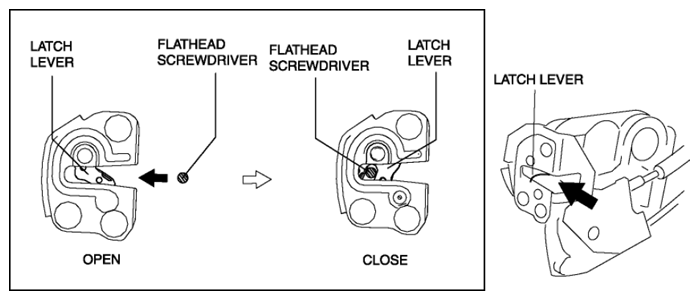

Fig 2: Pressing Latch Using Flathead Screwdriver
Verify that the continuity is as indicated in the table.

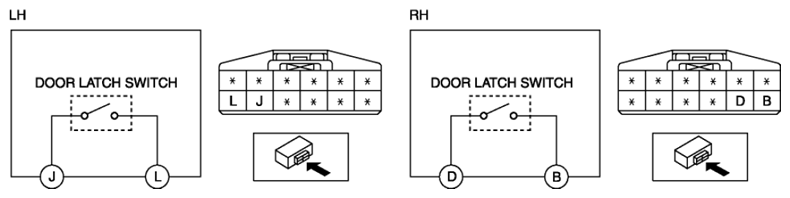

Fig 3: Door Latch Switch With Connector Terminal Identification
- If not as indicated in the table, replace the front door latch and lock actuator.

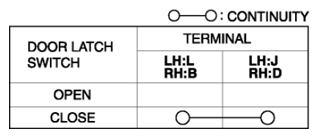

Fig 4: Door Latch Switch Continuity Chart
