Door Lock Switch Inspection

  1. Inspect for continuity between the door lock switch terminals.

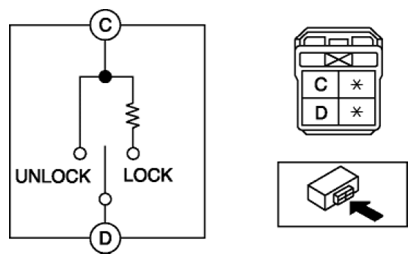

    Fig 1: Door Lock Switch Circuit
    G08108031
    • If not as specified, replace the door lock switch.

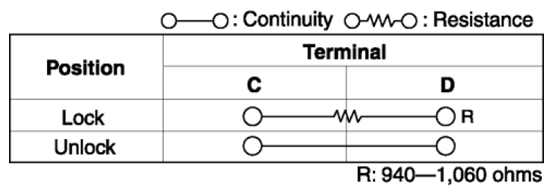

      Fig 2: Door Lock Switch Terminal Continuity Chart
      G08108032
