Section 13 (Manual Transaxle)
>>
Output Shaft Disassembly/Assembly
>>
Notes
Output Shaft Disassembly/Assembly: Notes
WARNING:
This page is about a different variant/trim than selected.

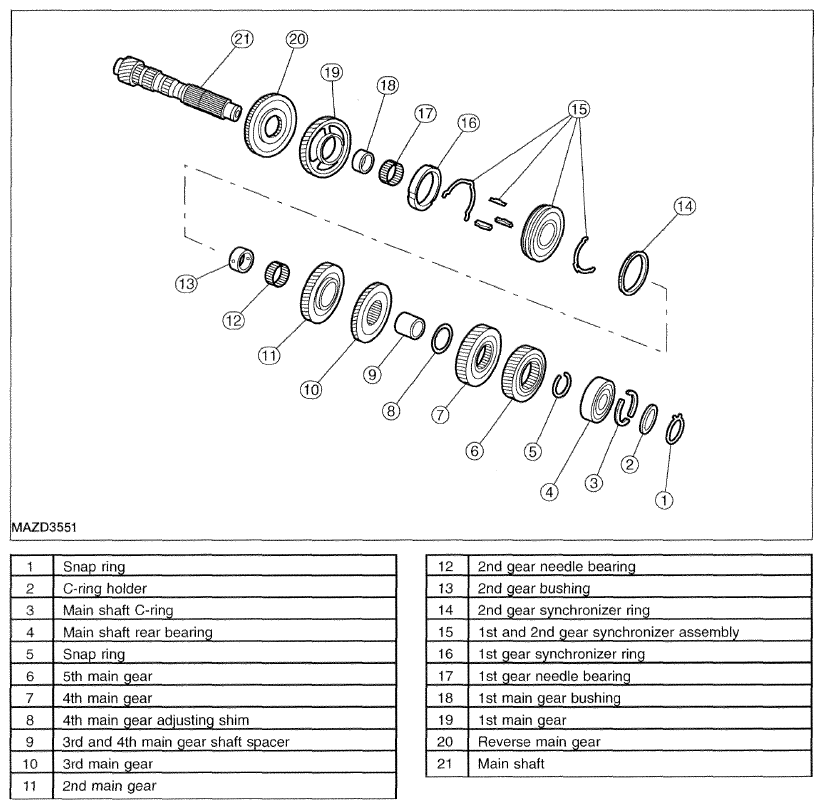

Fig 1: Exploded View Of Output Shaft Components
Courtesy of MAZDA MOTORS CORP.
