Connector End Views - Power Windows

POWER WINDOWS CONNECTOR REFERENCE

Connector End Views

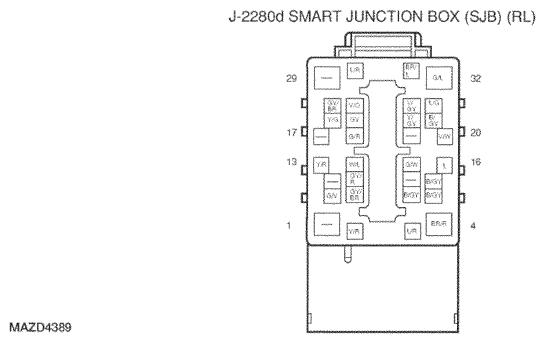

G07435895

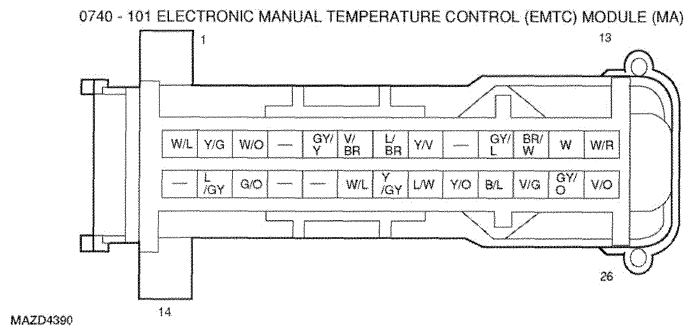

G07435896

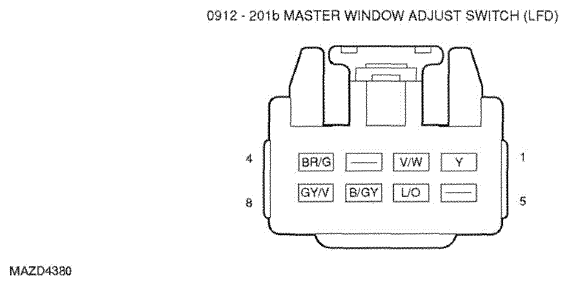

G07435897

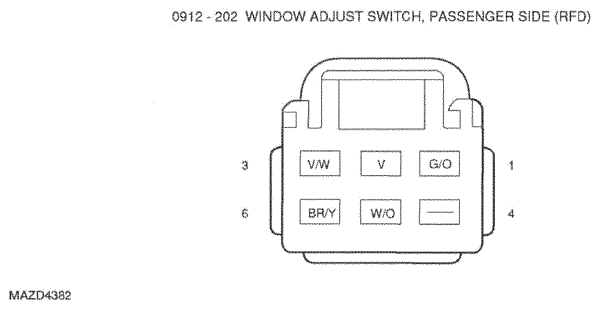

G07435898

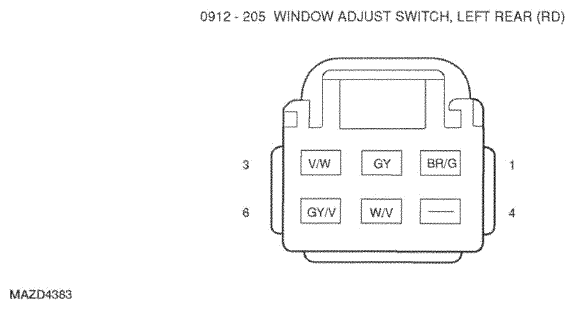

G07435899

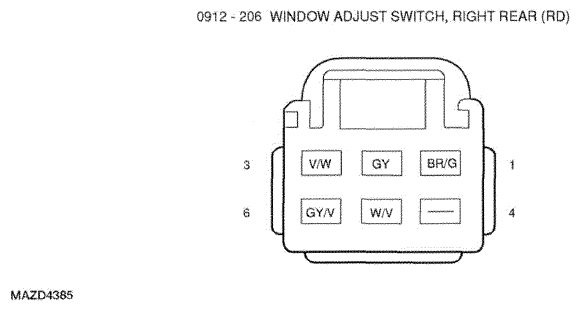

G07435900

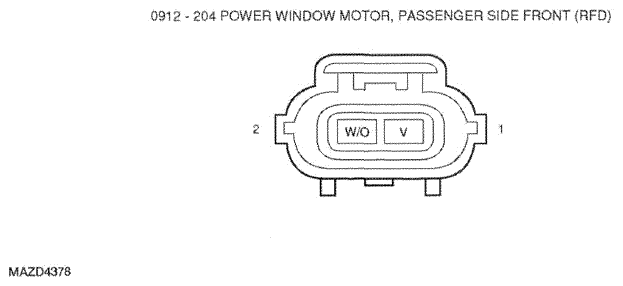

G07435901

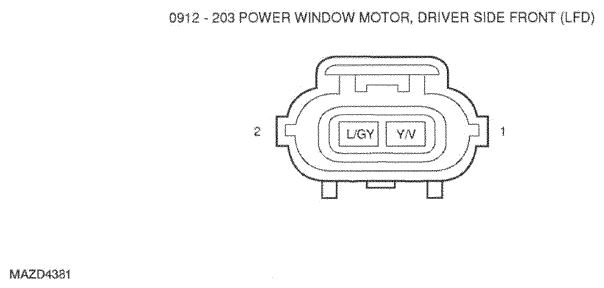

G07435902

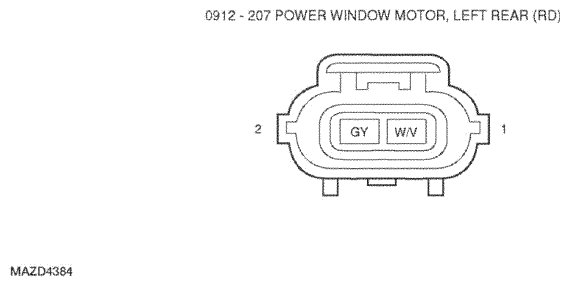

G07435903

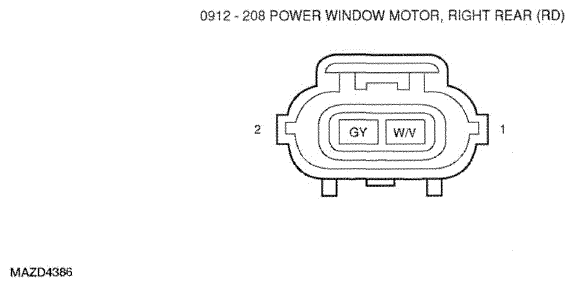

G07435904

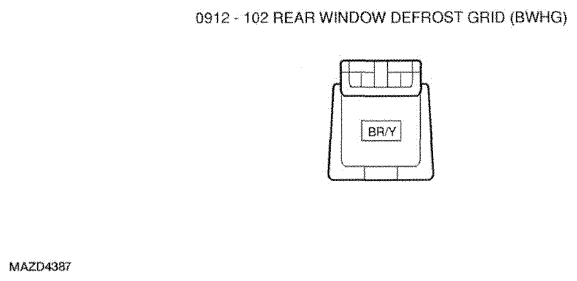

G07435905
G07435906
