Component Test - Delayed Accessory Relay

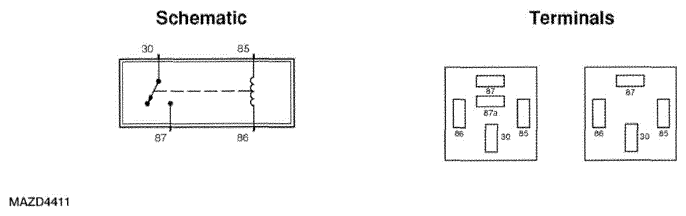

Courtesy of MAZDA MOTORS CORP. DELAYED ACCESSORY RELAY CONNECTOR TERMINALS
| Circuit to Test |
Connect Ohmmeter to Terminals |
A Good Relay Will Indicate |
| Coil |
85 and 86 |
50-100Ω |
| Coil - Contact |
30 and 87 |
Open Circuit |
| 86 and 30 |
Open Circuit |
| 86 and 87 |
Open Circuit |
