Exterior Mirror Motor Removal/Installation

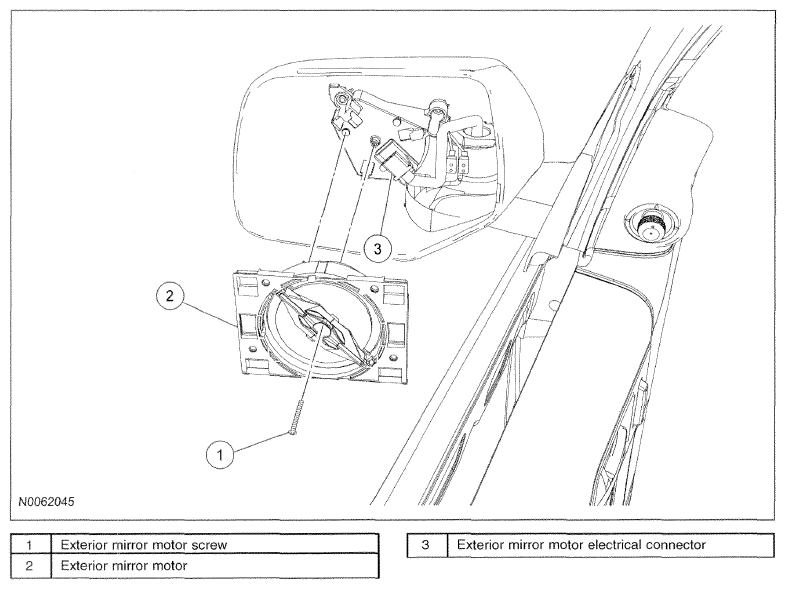

Fig 1: Exterior Mirror Motor Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Remove the exterior mirror glass. See EXTERIOR MIRROR GLASS REMOVAL/INSTALLATION  .
2. Remove the exterior mirror motor screw.
3. With a flat-blade tool, release the 3 exterior mirror motor tabs.
   Fig 2: Locating Exterior Mirror Motor Tabs

   Courtesy of MAZDA MOTORS CORP.
4. Remove the exterior mirror motor.
   • Disconnect the electrical connector.
5. To install, reverse the removal procedure.
