Rear Seat Backrest Disassembly/Assembly: Notes

NOTE:
  • 60 percent rear seat backrest (LH) shown in illustration, 40 percent backrest (RH) similar.

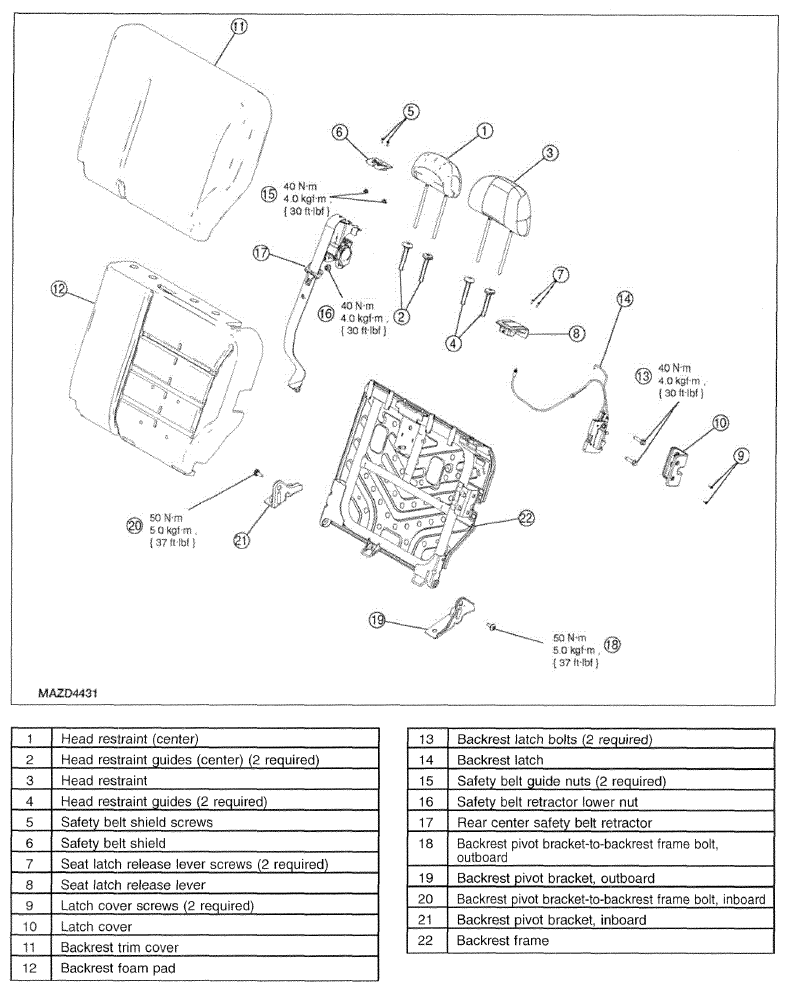

Fig 1: Exploded View Of Rear Seat Backrest Components With Torque Specifications
G07436605Courtesy of MAZDA MOTORS CORP.
