Front Seat Removal/Installation: Notes

NOTE:

• Driver seat shown in illustration, passenger seat similar.
• Power seat shown in illustration, manual seat similar.
• For torque specifications and torque sequence, see the appropriate procedures in this service information.

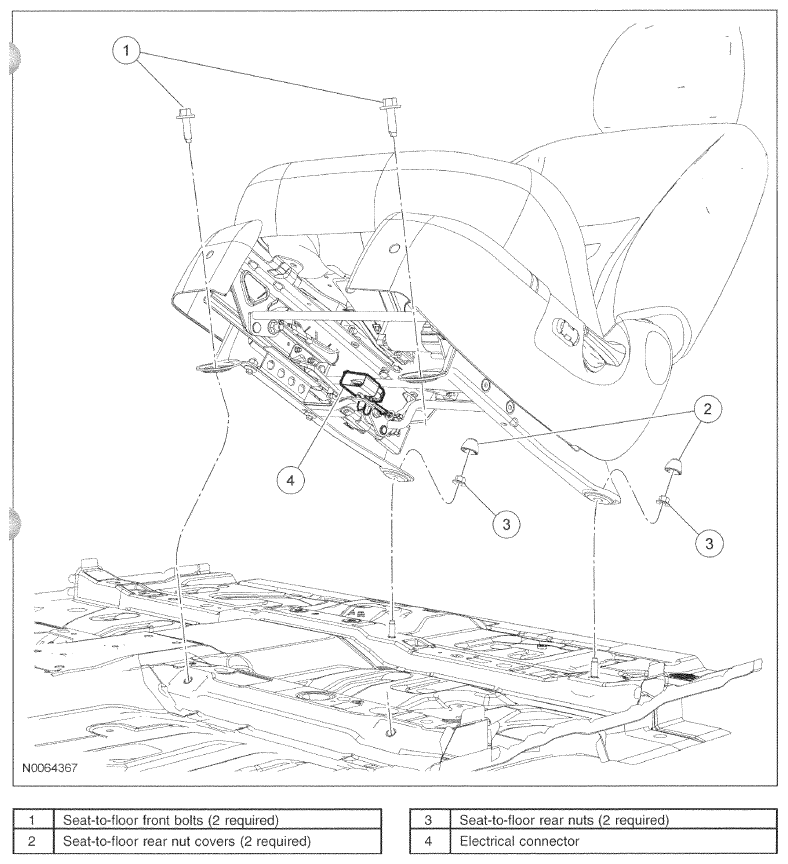

Fig 1: Identifying Front Seat Components

Courtesy of MAZDA MOTORS CORP.
