Front Seat Backrest Disassembly/Assembly: Notes

NOTE:

• Driver seat backrest shown in illustration, passenger seat backrest similar.

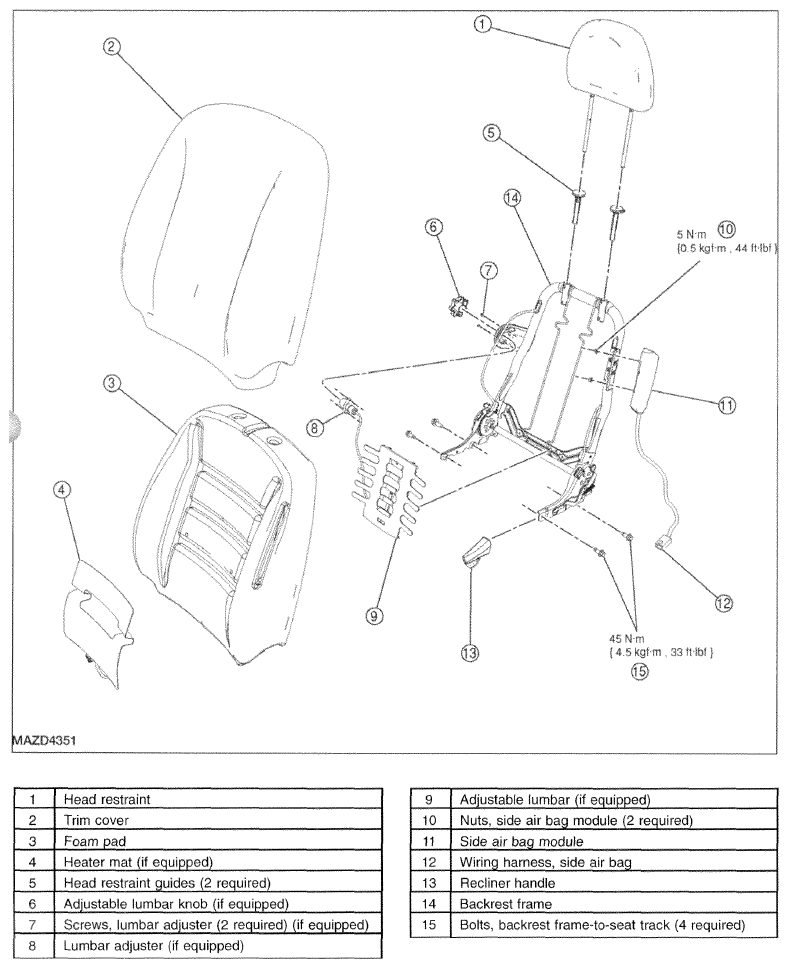

Fig 1: Driver Seat Backrest Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
