Mass Air Flow (MAF) Sensor Removal/Installation - Hybrid

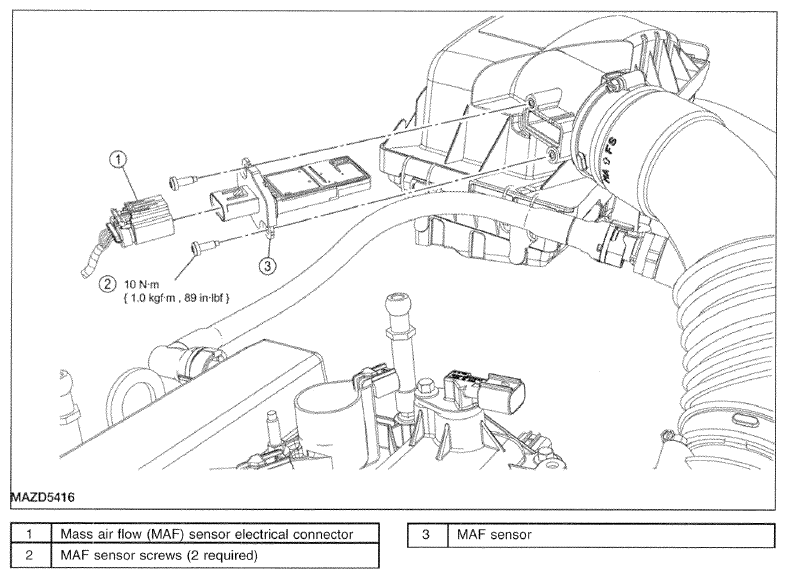

Fig 1: Mass Air Flow (MAF) Sensor Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Remove the 2 screws and the MAF sensor.
   • To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
3. To install, reverse the removal procedure.
